Using

Quickstart

An example dataset is available at data/berlin. You can reconstruct it using by running:

bin/opensfm_run_all data/berlin

This will run the entire SfM pipeline and produce the file data/berlin/reconstruction.meshed.json as output.

Viewer setup

Download the viewer dependencies (mapillary-js, gl-matrix, dat.gui) from npm by running:

./viewer/node_modules.sh

Serve a dataset

To visualize the result you can start the viewer HTTP server by running:

python3 viewer/server.py -d data/berlin

and then browse to http://localhost:8080 and select a reconstruction file. You should see something like

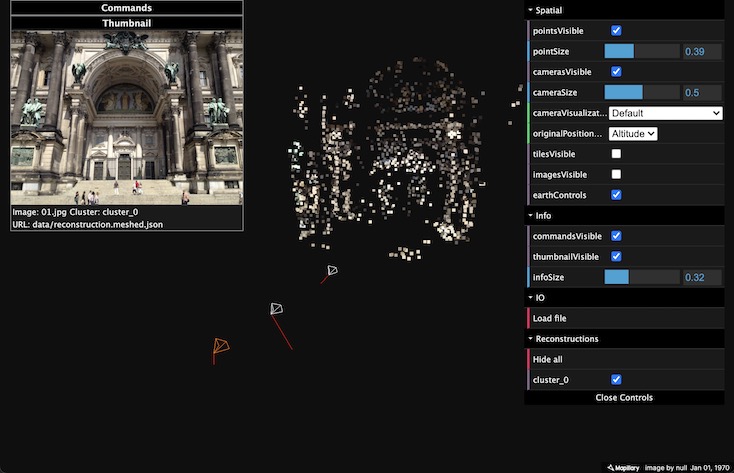

_images/berlin_viewer.jpg

Load reconstructions manually

Start the viewer HTTP server by running:

python3 viewer/server.py

and then browse to http://localhost:8080 and pick or drop one or multiple reconstruction files. Note that images will not be loaded for this case.

You can switch between earth and street level controls. In street level mode you can use the arrows to move between images.

Dense point clouds

If you want to get a denser point cloud, you can run:

bin/opensfm undistort data/berlin
bin/opensfm compute_depthmaps data/berlin

This will run dense multiview stereo matching and produce a denser point cloud stored in data/berlin/unidtorted/depthmaps/merged.ply. You can visualize that point cloud using MeshLab or any other viewer that supports PLY files.

For the Berlin dataset you should get something similar to this

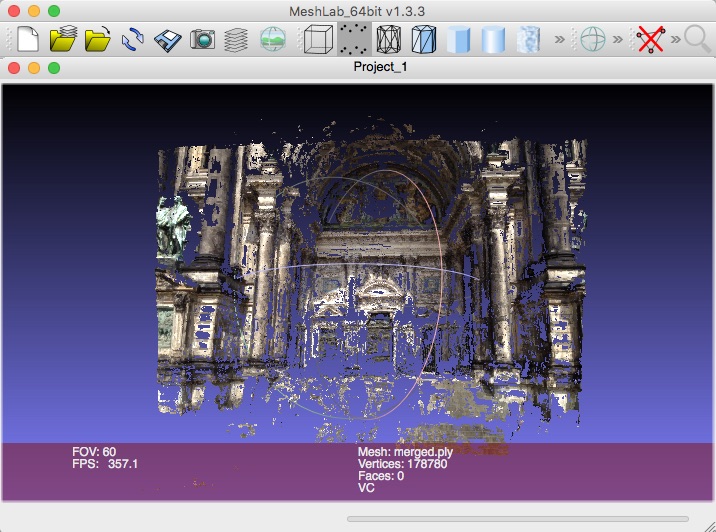

_images/berlin_point_cloud.jpg

To reconstruct your own images,

  1. put some images in data/DATASET_NAME/images/, and

  2. copy data/berlin/config.yaml` to ``data/DATASET_NAME/config.yaml

Reconstruction Commands

There are several steps required to do a 3D reconstruction including feature detection, matching, SfM reconstruction and dense matching. OpenSfM performs these steps using different commands that store the results into files for other commands to use.

The single application bin/opensfm is used to run those commands. The first argument of the application is the command to run and the second one is the dataset to run the commands on.

Here is the usage page of bin/opensfm, which lists the available commands:

usage: opensfm [-h] command ...

positional arguments:
  command            Command to run
    extract_metadata  Extract metadata from images' EXIF tag
    detect_features   Compute features for all images
    match_features    Match features between image pairs
    create_tracks     Link matches pair-wise matches into tracks
    reconstruct       Compute the reconstruction
    bundle            Bundle a reconstruction
    mesh              Add delaunay meshes to the reconstruction
    undistort         Save radially undistorted images
    compute_depthmaps
                    Compute depthmap
    compute_statistics
                    Compute statistics and save them in the stats folder
    export_ply        Export reconstruction to PLY format
    export_openmvs    Export reconstruction to openMVS format
    export_visualsfm  Export reconstruction to NVM_V3 format from VisualSfM
    export_pmvs       Export reconstruction to PMVS
    export_bundler    Export reconstruction to bundler format
    export_colmap     Export reconstruction to colmap format
    export_geocoords  Export reconstructions in geographic coordinates
    export_report     Export a nice report based on previously generated
                    statistics
    create_submodels  Split the dataset into smaller submodels
    align_submodels   Align submodel reconstructions

optional arguments:
  -h, --help         show this help message and exit

This commands extracts EXIF metadata from the images an stores them in the exif folder and the camera_models.json file.

The following data is extracted for each image:

  • width and height: image size in pixels

  • gps latitude, longitude, altitude and dop: The GPS coordinates of the camera at capture time and the corresponding Dilution Of Precision). This is used to geolocate the reconstruction.

  • capture_time: The capture time. Used to choose candidate matching images when the option matching_time_neighbors is set.

  • camera orientation: The EXIF orientation tag (see this exif orientation documentation). Used to orient the reconstruction straight up.

  • projection_type: The camera projection type. It is extracted from the GPano metadata and used to determine which projection to use for each camera.
    Supported types are :

    perspective : perspective projection with 2nd and 4th order radial distorsion radial : same as above but with principal point and aspect aspect ratio simple_radial : perspective projection with 2nd order radial distorsion, principal point and aspect aspect ratio brown : perspective projection with 2nd/4th/6th radial, two tangential, principal point and aspect aspect ratio spherical (or legacy equirectangular) : spherical projection for 360 images fisheye : fisheye projection with 2nd and 4th order radial distorsion fisheye_opencv : fisheye projection identical to OpenCV’s fisheye_ fisheye62 : fisheye projection with 1-6th order radial distorsion, 2 tangential, principal point and aspect aspect ratio dual : linear interpolation between fisheye and perspective models thanks to some transitioning parameter

  • focal_ratio: The focal length provided by the EXIF metadata divided by the sensor width. This is used as initialization and prior for the camera focal length parameter. For any model using aspect ratio, focal_x/focal_y have to used instead.

  • make and model: The camera make and model. Used to build the camera ID.

  • camera: The camera ID string. Used to identify a camera. When multiple images have the same camera ID string, they will be assumed to be taken with the same camera and will share its parameters.

Once the metadata for all images has been extracted, a list of camera models is created and stored in camera_models.json. A camera model is created for each diferent camera ID string found on the images.

For each camera ID, the cammera model parameters are chosen using the following procedure.

  • If the camera ID exists in the camera_models_overrides.json then the parameters are taken from that file.

  • Otherwise, if the camera ID exists in an internal calibration database, then the camera parameters are taken from the database.

  • Otherwise, the camera parameters are inferred from the avalable EXIF metadata.

Providing additional metadata

When some metadata is missing or erroneous in the EXIF, it can be provided on the exif_overrides.json file. This file must contain a dictionary mapping image names to the metadata fields that will override the values in the EXIF.

For example, to set the GPS location of an image that might not have it available in its EXIF tags, we will write the following in the exif_overrides.json file:

{
    "image_name.jpg": {
        "gps": {
            "latitude": 52.51891,
            "longitude": 13.40029,
            "altitude": 27.0,
            "dop": 5.0
        }
    }
}

These values are used during the extract_metadata, so we will need to rerun that command after writing the file.

Providing your own camera parameters

By default, the camera parameters are taken from the EXIF metadata using the procedure described above. If you know the camera parameters that you want to use, you can put them in a file named camera_models_overrides.json in the project folder. This file should have the same structure as camera_models.json. That is a dictionary mapping camera identifiers to the desired camera parameters.

When running the extract_metadata command, the parameters of any camera present in the camera_models_overrides.json file will be copied to camera_models.json overriding the default ones.

The simplest way to create the camera_models_overrides.json file is to rename camera_models.json and modify the parameters. You will need to rerun the extract_metadata command after that.

Optionally, you may want to override the camera parameters of all cameras in the dataset. To do so, use "all" as camera ID. For example:

{
    "all": {
        "projection_type": "perspective",
        "width": 1920,
        "height": 1080,
        "focal": 0.9,
        "k1": 0.0,
        "k2": 0.0,
    }
}

will set all cameras to use a perspective projection model. Likewise:

{
    "all": {
        "projection_type": "fisheye",
        "width": 1920,
        "height": 1080,
        "focal": 0.5,
        "k1": 0.0,
        "k2": 0.0,
    }
}

will set all cameras to use a fisheye projection model. And:

{
    "all": {
        "projection_type": "equirectangular",
        "width": 2000,
        "height": 1000,
    }
}

will set all cameras to use an equirectangular panoramic projection model.

Have a look at the spherical 360 images dataset for a complete example using camera_models_overrides.json to specify that the camera is taking 360 equirectangular images.

detect_features

This command detects feature points in the images and stores them in the feature folder.

match_features

This command matches feature points between images and stores them in the matches folder. It first determines the list of image pairs to run, and then run the matching process for each pair to find corresponding feature points.

Since there are a lot of possible image pairs, the process can be very slow. It can be speeded up by restricting the list of pairs to match. The pairs can be restricted by GPS distance, capture time or file name order.

create_tracks

This command links the matches between pairs of images to build feature point tracks. The tracks are stored in the tracks.csv file. A track is a set of feature points from different images that have been recognized to correspond to the same pysical point.

reconstruct

This command runs the incremental reconstruction process. The goal of the reconstruction process is to find the 3D position of tracks (the structure) together with the position of the cameras (the motion). The computed reconstruction is stored in the reconstruction.json file.

mesh

This process computes a rough triangular mesh of the scene seen by each images. Such mesh is used for simulating smooth motions between images in the web viewer. The reconstruction with the mesh added is stored in reconstruction.meshed.json file.

Note that the only difference between reconstruction.json and reconstruction.meshed.json is that the later contains the triangular meshes. If you don’t need that, you only need the former file and there’s no need to run this command.

undistort

This command creates undistorted version of the reconstruction, tracks and images. The undistorted version can later be used for computing depth maps.

compute_depthmaps

This commands computes a dense point cloud of the scene by computing and merging depthmaps. It requires an undistorted reconstructions. The resulting depthmaps are stored in the depthmaps folder and the merged point cloud is stored in undistorted/depthmaps/merged.ply

compute_statistics

This commands computes a set of statistics that are stored in JSON in the stats/stats.json, together with some diagrams image files (heatmap, matchgraph, topview and residuals). Statistics will be computed using the reconstruction.json file. They can be later exported a as a nicer PDF report using the next command export_report.

export_report

This commands export the statistics file stats/stats.json and the diagrams previously computed by compute_statistics, as a PDF report stored in stats/report.pdf.

Configuration

SfM algorithms have options and depend on various parameters. OpenSfM comes setup with default values for each option but you might want to tune some options for a particular dataset. Options used to reconstruct a dataset can be set by editing the file DATASET_PATH/config.yaml. Any option present in this file will override the default.

Checkout the default configuration to see the list of options.

Ground Control Points

When EXIF data contains GPS location, it is used by OpenSfM to georeference the reconstruction. Additionally, it is possible to use ground control points.

Ground control points (GCP) are landmarks visible on the images for which the geospatial position (latitude, longitude and altitude) is known. A single GCP can be observed in one or more images.

OpenSfM uses GCP in two steps of the reconstruction process: alignment and bundle adjustment. In the alignment step, points are used to globaly move the reconstruction so that the observed GCP align with their GPS position. Two or more observations for each GCP are required for it to be used during the aligment step.

In the bundle adjustment step, GCP observations are used as a constraint to refine the reconstruction. In this step, all ground control points are used. No minimum number of observation is required.

GPSs can be specified in two file formats. If existing, both are loaded.

GCPs can be specified by adding a text file named ground_control_points.json at the root folder of the dataset. The format of the file should be as follows:

{
  "points": [
    {
      "id": STRING,
      "position": {
        "latitude": FLOAT,
        "longitude": FLOAT,
        "altitude": FLOAT  # optional
      },
      "observations": [
        {
          "shot_id": STRING,
          "projection": [FLOAT, FLOAT]  # in normalized image coordinates
        },
        ...
      ]
    },
    ...
  ]
}

For each point, the latitude and longitude in WGS84 are required. The altitude, in meters, is optional. For each image where the point has been observed, the image id and the coordinates of the observation in Normalized Image Coordinates are required.

GCPs can be specified by adding a text file named gcp_list.txt at the root folder of the dataset. The format of the file should be as follows.

  • The first line should contain the name of the projection used for the geo coordinates.

  • The following lines should contain the data for each ground control point observation. One per line and in the format:

    <geo_x> <geo_y> <geo_z> <im_x> <im_y> <image_name>


    Where <geo_x> <geo_y> <geo_z> are the geospatial coordinates of the GCP and <im_x> <im_y> are the Pixel Coordinates where the GCP is observed. If the altitude of the GCP is not known, set <geo_z> to NaN.

Supported projections

The geospatial coordinates can be specified in one the following formats.

  • WGS84: This is the standard latitude, longitude coordinates used by most GPS devices. In this case, <geo_x> = longitude, <geo_y> = latitude and <geo_z> = altitude

  • UTM: UTM projections can be specified using a string projection string such as WGS84 UTM 32N, where 32 is the region and N is . In this case, <geo_x> = E, <geo_y> = N and <geo_z> = altitude

  • proj4: Any valid proj4 format string can be used. For example, for UTM 32N we can use +proj=utm +zone=32 +north +ellps=WGS84 +datum=WGS84 +units=m +no_defs

Example

This file defines 2 GCP whose coordinates are specified in the WGS84 standard. The first one is observed in both 01.jpg and 02.jpg, while the second one is only observed in 01.jpg

WGS84
13.400740745 52.519134104 12.0792090446 2335.0 1416.7 01.jpg
13.400740745 52.519134104 12.0792090446 2639.1 938.0 02.jpg
13.400502446 52.519251158 16.7021233002 766.0 1133.1 01.jpg
